Titan Series - The Surface Master for Large Gears

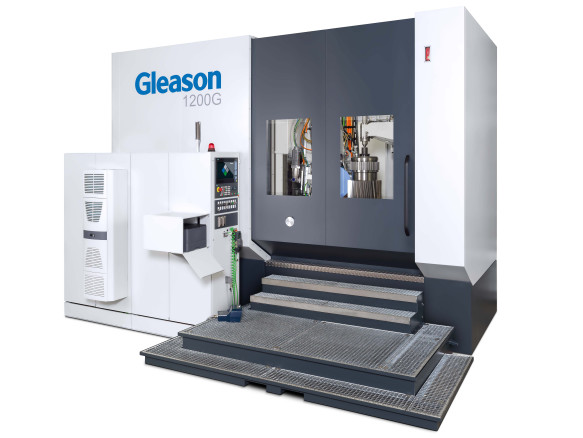

The Titan® Series of large Profile Grinding Machines combines maximum productivity with extremely accurate surface qualities. The fully automatic tool changer paves the path for new gear grinding strategies. The Titan Series is available in two model sizes: 1200G and 1600G.



Workpiece diameter, max.  1,600 mm
Profile depth, max. 100 mm
Axial travel, max. 1,600 mm



Integrated Tool Changer

The fully automatic tool changer raises productivity at the highest quality level while maintaining process reliability through the complete manufacturing process.

Excellent Surface Qualities

The possibility of utilizing specific grinding wheels for roughing and finishing operations in combination with the appropriate finishing strategy results in gears with unique surface qualities.

Multi-Disc Grinding

The proven Opti-GrindTM Multi-Disc Grinding Method ensures optimum grinding conditions, especially suited for gears with a lower number of teeth.




Completing Different Gears in One Clamping

No matter which grinding strategy is used, the Titan Series makes it easy to grind workpieces with different gears in one clamping.

The Benchmark for Gear Grinding

Gleason offers a wide range of innovative technologies for gear grinding. Achieve the best possible quality and highest productivity with patented profile grinding innovations. Learn more here:


For Job Shoppers and Mass Production Environments

The Titan Series adapts to the specific task, whether it is the optimum finish of single workpieces or the serial manufacturing of large quantities of high-quality gears.
