Workholding Spare and Wear Parts

We offer all required spare and wear parts for Gleason workholding, as well as many spare and wear parts for other manufacturers' workholding equipment. Spare and wear parts can be easily requested through the "e-Ticket Tooling" by entering the Gleason Tooling Number which you can find on the workholding drawing we provide with any new workholding product. We get back to you asap.

e-Ticket Tooling

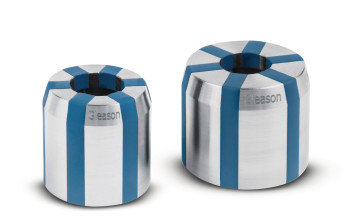

Segmented Collets
Gleason Tooling Number: See workholding drawing

Segmented collets are available in 6- or 7-degree variants as wear part replacements for Gleason and non-Gleason workholding systems. Gleason segmented collets feature excellent vibration damping due to vulcanized clamping elements made from high-tech elastomer and provide constant clamping forces for a wide range of diameters. Used segmented collets can be replaced without further readjustments. Available with standard segmented clamping sleeves or sleeves made to customer specifications.

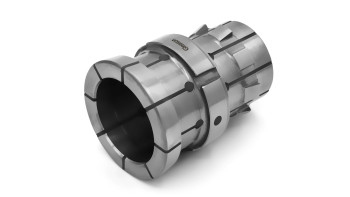

Collets
Gleason Tooling Number: See workholding drawing

We manufacture replacement collets for Gleason and non-Gleason workholding equipment. With their good dust resistance and high quality springs, Gleason collets provide an outstanding service life. Used collets can be replaced without readjustment. Available in standard or custom designs.

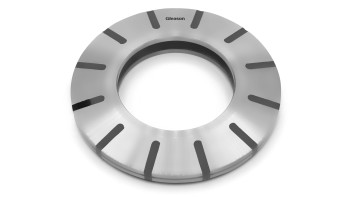

Uni-Spand® Springs
Gleason Tooling Number: See workholding drawing

Gleason Uni-Spand® Springs are available for small to mid-size applications. With their great expansion range, Uni-Spand Springs feature a very high adaptability. Precision clamping elements assure a reliable pull back, while high quality springs guarantee a long service life. Used springs can be replaced fast and easily without readjustments.

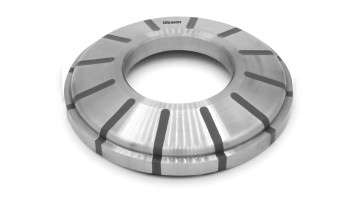

X-Pandisk® Springs
Gleason Tooling Number: See workholding drawing

Gleason X-Pandisk® Springs are available for mid-size to large applications. With their great expansion range, X-Pandisk Springs feature a very high adaptability. High precision clamping elements assure a reliable pull back, while high quality springs guarantee a long service life. Used springs can be replaced fast and easily without readjustments.


To reorder or overhaul a tooling product or to submit a support request, please fill out the e-ticket form. Based on the data, we will immediately forward a request to the specialist departments and contact you with a non-binding offer. The Gleason material number can be found on the shipping carton, drawing and/or on the part itself.
