Next-Generation Gear Engineering and Manufacturing Software

GEMS - Gleason Engineering and Manufacturing System

With GEMS, Gleason offers the next-generation design and manufacturing system for all types of bevel gears and selected types of cylindrical gears. This powerful software platform provides advanced gear design and analysis capabilities, seamlessly integrates with KISSsoft design software, and helps to optimize the entire bevel gear manufacturing process— from Design to Manufacture to Measure.

Test License Request Live Demo Request

Powerful Features

  • Interactive dimension sheet with 3D gear and pinion graphics incl. real blank modifications.

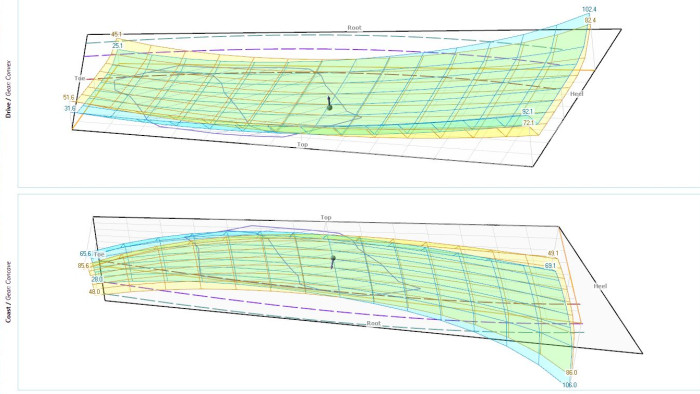

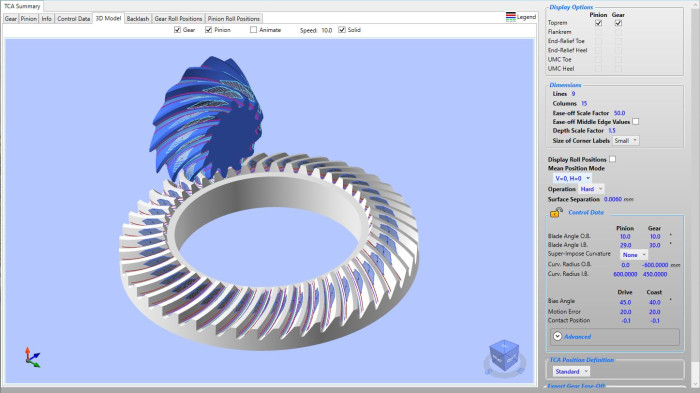

  • Combined ease-off and TCA for pinion and gear incl. interactive ease-off correction and optimization.

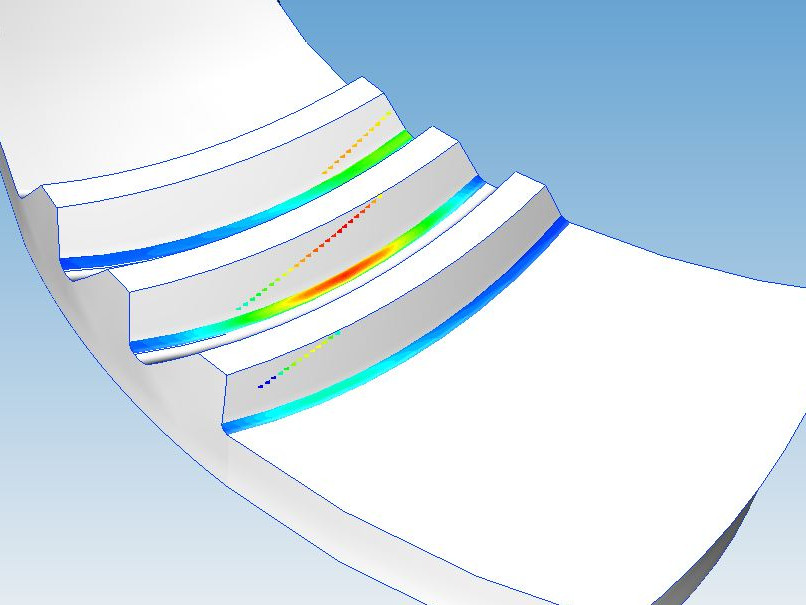

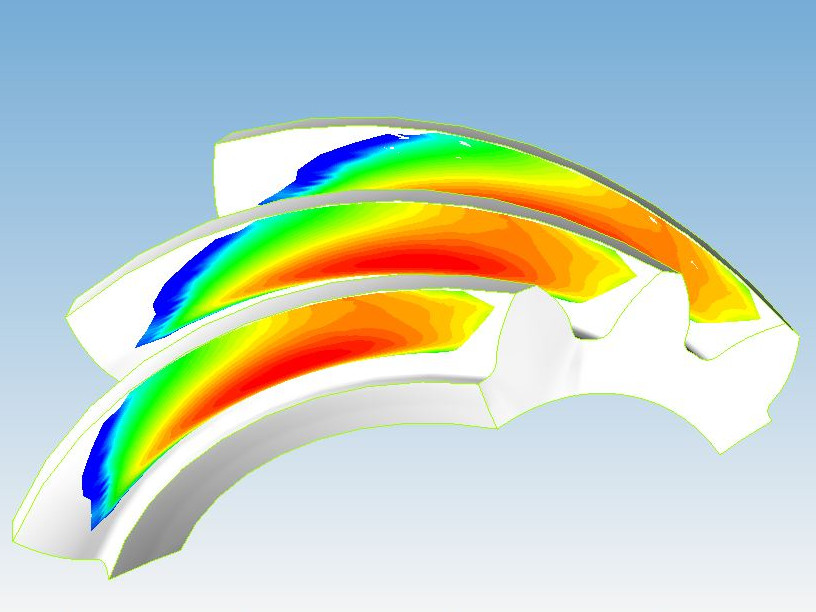

  • 2D/3D FEA Stress Calculation, including interactive root bending stress and contact stress output with S-N Curves.
  • Motion error and FFT analysis under load for optimized NVH characteristics.

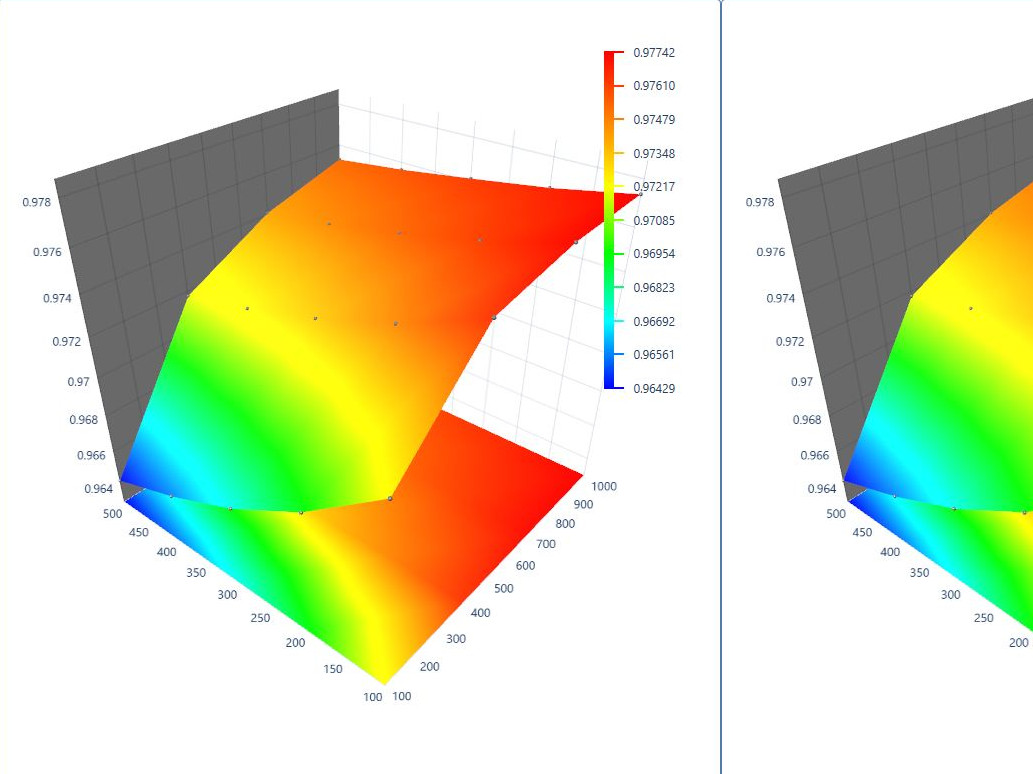

  • Efficiency calculation with rpm and torque matrix.
  • 3D tool path calculation for interference studies and third blade impact calculation.

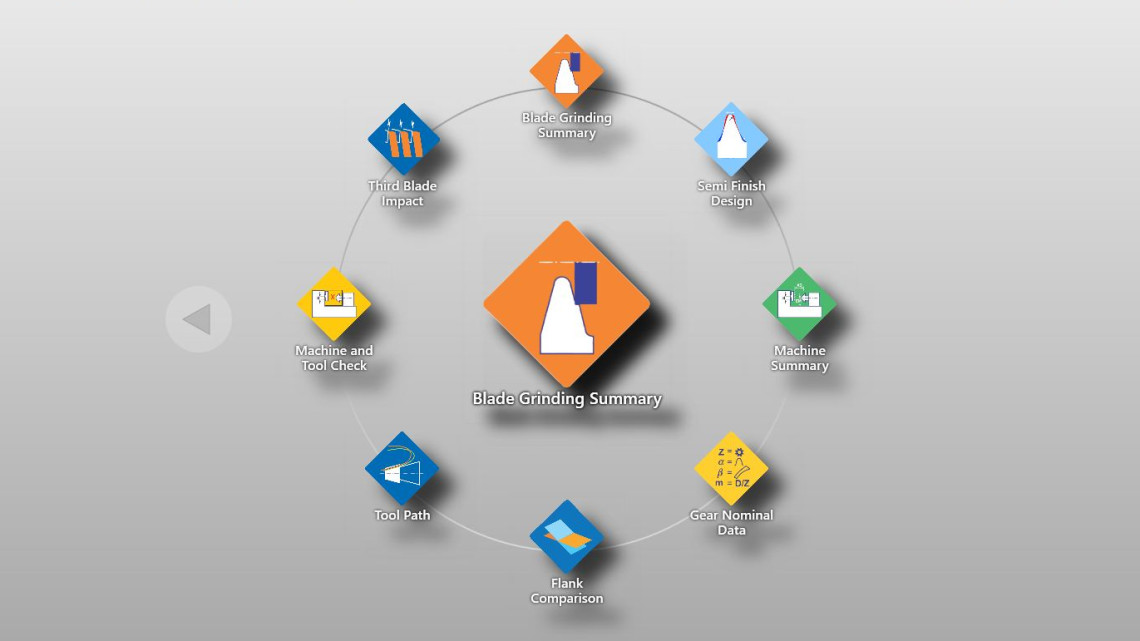

  • Machine and blade grinding summary calculation and process optimizations.
  • High resolution nominal data creation incl. correctional matrixes and root fillet measurement.

GEMS Cloud

Design gears anywhere and anytime. The new GEMS Cloud Ecosystem allows the design and optimization of your gear sets directly in the web browser.

Coniflex Pro
Design and Manufacturing System for Differential Gears

Gleason's Coniflex® Pro Design and Manufacturing System is ideally suited for producing stronger, quieter, and more reliable differential gears in high volumes, for automotive e-drive and conventional differentials, as well as truck, bus and off-highway transmissions.

Learn More About Coniflex Pro

Coniface and Coniclutch for Face Gears and Clutches

When grinding face gears and clutches, axchieve excellent surface finish, high spacing accuracy and precise flank forms with GEMS's Coniface and Coniclutch design and grinding process, also available for straight bevel gears and couplings.

Interfacing to KISSsoft Gear and Transmission Design Software

GEMS communicates directly with common design suites like KISSsoft Gear Design Software. Gear geometries can be exported from GEMS to KISSsoft and vice versa, matching GEMS-definitions and exporting corresponding misalignment information or the corrected gear geometry with loaded case results.

Get to Know KISSsoft

Seamless Connectivity

GEMS easily connects to and transfers data with, CAGETM, UNICALTM, and other common design software suites and platforms.

Live Demonstrations

Contact us for your free GEMS demonstration.

Test License Request Live Demo Request
