Step 6: Pressure Angle Correction
                      Coast Side
                      Pinion -15mm at Root

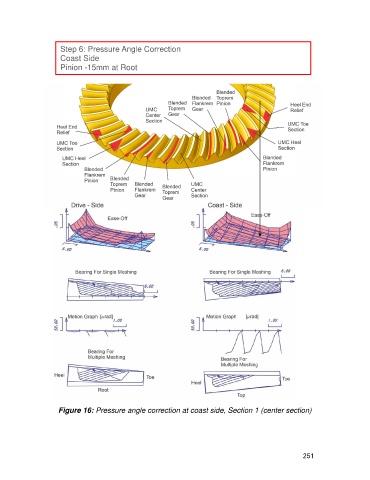

                    Figure 16: Pressure angle correction at coast side, Section 1 (center section)
