Step 2: Heel End-Relief
nd
Gear 2 Order, Section Length = 20%, Coast Relief = 25mm,
Drive Relief = 10mm

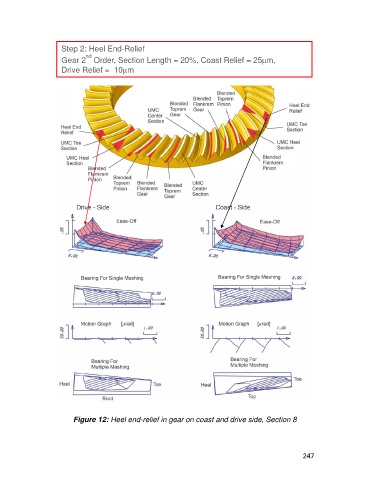

Figure 12: Heel end-relief in gear on coast and drive side, Section 8
