Step 7: Third UMC Heel Section Increase
                              nd
                      Pinion 2  Order, Section Length = 30%, Coast Relief = 35mm,
                      Drive Relief = 0mm

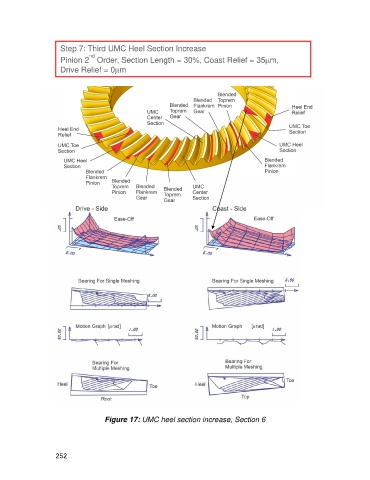

                                    Figure 17: UMC heel section increase, Section 6






                   252
