Step 4: Third UMC Heel Sections
nd
Pinion 2 Order, Section Length = 30%, Coast Relief = -25mm,
Drive Relief = +25mm

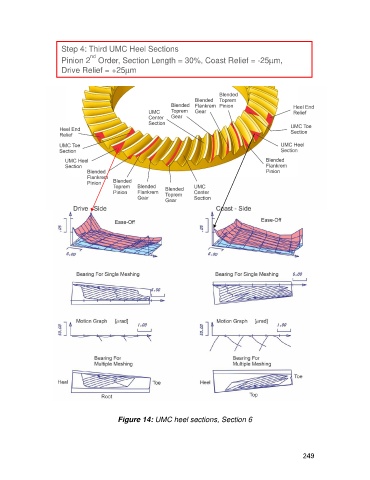

Figure 14: UMC heel sections, Section 6
