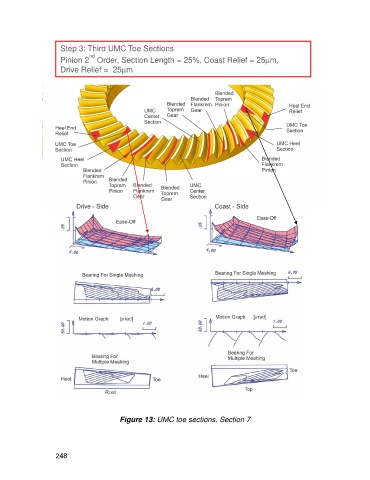

Step 3: Third UMC Toe Sections
nd
Pinion 2 Order, Section Length = 25%, Coast Relief = 25mm,
Drive Relief = 25mm
Figure 13: UMC toe sections, Section 7
248
