P. 265

Step 5: Profile Crowning Correction
                      Coast Side
                      Pinion -5mm

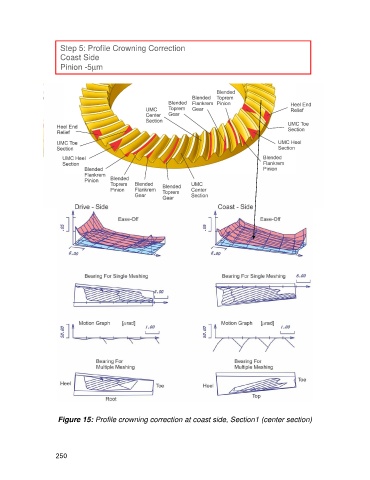

                    Figure 15: Profile crowning correction at coast side, Section1 (center section)






                   250
