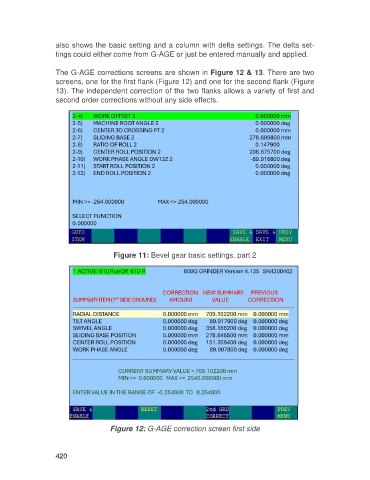

also shows the basic setting and a column with delta settings. The delta set-
tings could either come from G-AGE or just be entered manually and applied.

The G-AGE corrections screens are shown in Figure 12 & 13. There are two
screens, one for the first flank (Figure 12) and one for the second flank (Figure
13). The independent correction of the two flanks allows a variety of first and
second order corrections without any side effects.

Figure 11: Bevel gear basic settings, part 2

Figure 12: G-AGE correction screen first side
