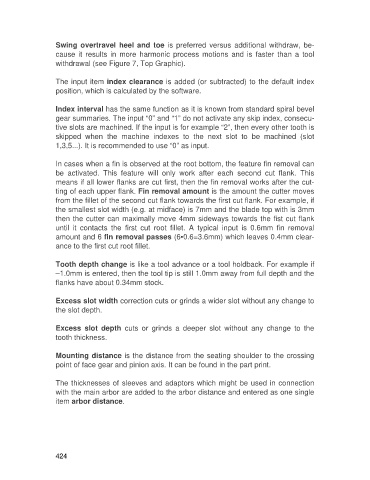

Swing overtravel  heel and toe is preferred  versus  additional withdraw,  be-
                   cause  it  results  in  more  harmonic  process  motions  and  is  faster  than  a  tool
                   withdrawal (see Figure 7, Top Graphic).

                   The input item index clearance is added (or subtracted) to the default index
                   position, which is calculated by the software.

                   Index interval has the same function as it is known from standard spiral bevel
                   gear summaries. The input “0” and “1” do not activate any skip index, consecu-
                   tive slots are machined. If the input is for example “2”, then every other tooth is
                   skipped  when  the  machine  indexes  to  the  next  slot  to  be  machined  (slot
                   1,3,5...). It is recommended to use “0” as input.

                   In cases when a fin is observed at the root bottom, the feature fin removal can
                   be  activated.  This  feature  will  only  work  after  each  second  cut  flank.  This
                   means if all lower flanks are cut first, then the fin removal works after the cut-
                   ting of each upper flank. Fin removal amount is the amount the cutter moves
                   from the fillet of the second cut flank towards the first cut flank. For example, if
                   the smallest slot width (e.g. at midface) is 7mm and the blade top with is 3mm
                   then the cutter can maximally move 4mm sideways towards the fist cut flank
                   until  it  contacts  the  first  cut  root  fillet.  A  typical  input  is  0.6mm  fin  removal
                   amount and 6 fin removal passes (6▪0.6=3.6mm) which leaves 0.4mm clear-
                   ance to the first cut root fillet.

                   Tooth depth change is like a tool advance or a tool holdback. For example if
                   –1.0mm is entered, then the tool tip is still 1.0mm away from full depth and the
                   flanks have about 0.34mm stock.

                   Excess slot width correction cuts or grinds a wider slot without any change to
                   the slot depth.

                   Excess  slot  depth  cuts  or  grinds  a  deeper  slot  without  any  change  to  the
                   tooth thickness.

                   Mounting distance is the distance from the seating shoulder to the crossing
                   point of face gear and pinion axis. It can be found in the part print.

                   The thicknesses of sleeves and adaptors which might be used in connection
                   with the main arbor are added to the arbor distance and entered as one single
                   item arbor distance.
