shown on the gear flank surfaces, similar to the Ease-Off, which also shows
pinion and gear corrections on the gear tooth projection.

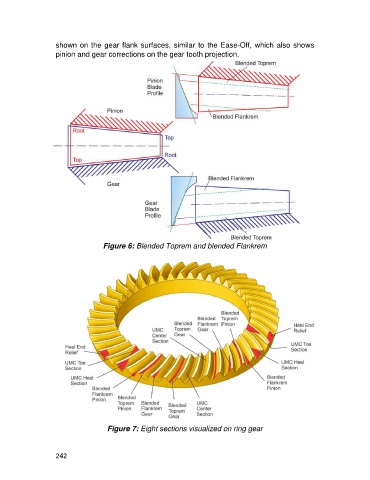

Figure 6: Blended Toprem and blended Flankrem
Figure 7: Eight sections visualized on ring gear
242
