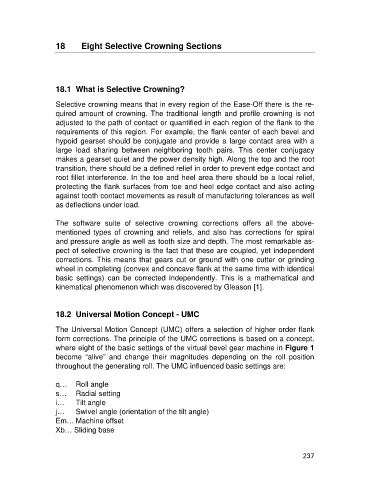

18       Eight Selective Crowning Sections





                   18.1  What is Selective Crowning?

                   Selective crowning means that in every region of the Ease-Off there is the re-
                   quired amount of crowning. The traditional length and profile crowning is not
                   adjusted to the path of contact or quantified in each region of the flank to the
                   requirements of this region. For example, the flank center of each bevel and
                   hypoid gearset should be conjugate and provide a large  contact area with a
                   large  load  sharing  between  neighboring  tooth  pairs.  This  center  conjugacy
                   makes a gearset quiet and the power density high. Along the top and the root
                   transition, there should be a defined relief in order to prevent edge contact and
                   root fillet interference. In the toe and heel area there should be a local relief,
                   protecting the flank surfaces from toe and heel edge contact and also acting
                   against tooth contact movements as result of manufacturing tolerances as well
                   as deflections under load.

                   The  software  suite  of  selective  crowning  corrections  offers  all  the  above-
                   mentioned  types  of  crowning  and  reliefs,  and  also  has  corrections  for  spiral
                   and pressure angle as well as tooth size and depth. The most remarkable as-
                   pect of selective crowning is the fact that these are coupled, yet independent
                   corrections. This means that gears cut or ground with one cutter or grinding
                   wheel in completing (convex and concave flank at the same time with identical
                   basic  settings)  can  be  corrected  independently.  This  is  a  mathematical  and
                   kinematical phenomenon which was discovered by Gleason [1].


                   18.2  Universal Motion Concept - UMC

                   The Universal Motion Concept (UMC) offers a selection of higher order flank
                   form corrections. The principle of the UMC corrections is based on a concept,
                   where eight of the basic settings of the virtual bevel gear machine in Figure 1
                   become  “alive”  and  change  their  magnitudes  depending  on  the  roll  position
                   throughout the generating roll. The UMC influenced basic settings are:

                   q…  Roll angle
                   s…  Radial setting
                   i…   Tilt angle
                   j…     Swivel angle (orientation of the tilt angle)
                   Em… Machine offset
                   Xb… Sliding base




                                                                                                     237
