Special Offers

P90 Hobbing Machine

This used P90 Hobbing Machine features all necessary equipment for universal hobbing and milling of a wide range of gears, shafts and worms. Built in 2020, with an operating time of 2,300h only and excellent maintenance care, it is backed by Gleason’s service support and installation expertise.

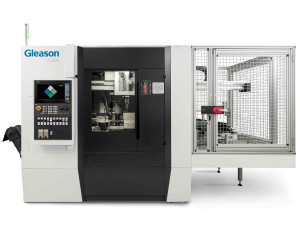

The 100H Hobbing Machine Series is the next generation of the well-known P90 Series with improvements in design, functionality and operator inferface. This hobbing machine and its variants handle a wealth of geared profiles up to a workpiece diameter of 120 mm, module 4 and a shaft length of 1200 mm.

Specifically designed for the economical production of gears with interfering contours and internal gears up to module 2.5 mm, its horizontal axis makes this machine also highly suitable for shaft-type parts. The 100PS can be equipped with an universal option to add hobbing to the machine's capabilites, or a performance option to extend the workpiece range to internal diameters up to 200 mm.

Preset shaper cutters and Power Skiving cutters on the 160CPS Cutter Presetting Device to get it right the first time.

The Genesis 210H Hobbing Machine with vertical workpiece axis equipped for wet cutting.

The Genesis 210H Hobbing Machine with vertical workpiece axis equipped for wet cutting.

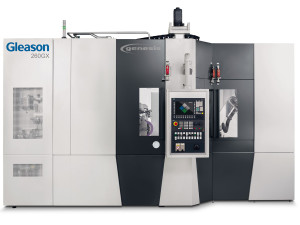

Genesis 260GX Threaded Wheel Grinding Machines combine maximum productivity with minimized idle and setup times.

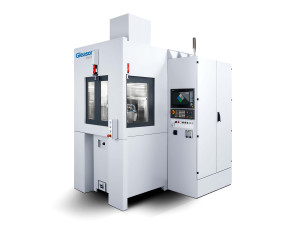

Two chamfer technologies are available on one single platform: Chamfer Hobbing, ideal for high volume automotive and light truck applications, including final drive ring gears and shafts; and Fly Cutter Chamfering, delivering exceptional flexibility for lower volume, small lot jobber applications. The Genesis 280CD Gear Chamfering Machine is available as standalone version, or as fully integrated hobbing and chamfering machine, the Genesis 280HCD.

Two chamfer technologies are available on one single platform: Chamfer Hobbing, ideal for high volume automotive and light truck applications, including final drive ring gears and shafts; and Fly Cutter Chamfering, delivering exceptional flexibility for lower volume, small lot jobber applications. The Genesis 280CD Gear Chamfering Machine is available as standalone version, or as fully integrated hobbing and chamfering machine, the Genesis 280HCD.

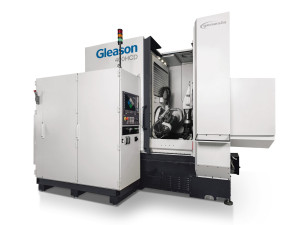

The 280HCD machine for gear hobbing with integrated chamfer cutting. Chamfering is executed in parallel to gear hobbing, perfect for highly productive environments but also suited for the efficient production of smaller batch sizes.

Gear shaping machine for shaping internal and external cylindrical gears, with electronic guide.

Gear shaping machine with performance and flexibility in a compact design up to 300 mm.

Gleason’s new 685Q for production quenching of bevel and cylindrical gears, including aerospace, automotive, truck and tractor main drive gears up to 685 mm in diameter.

The 175GMS nano Gear Metrology System is suitable for measuring internal and external spur and helical gears and splines up to 175 mm in diameter.

The 300GMS Gear Metrology System is suitable for measuring internal and external spur and helical gears and splines up to 300 mm in diameter.

The 350GMS Gear Metrology System is suitable for measuring internal and external spur and helical gears and splines up to 350 mm in diameter.

Gleason Metrology Systems offers a complete line of gear metrology systems for the inspection of medium and large-sized gears and shafts up to 3,000 mm in diameter and lengths up to 2,500 mm. With its wide array of options, the GMS^® Series supports any kind of inspection requirement, including surface measurement, Barkhausen Analysis, CMM capability and gear tool inspection.

Large Gleason Hobbing Machines offer maximum productivity for roughing and finishing operations on cylindrical gears for many industries. Starting with the P800, the modular construction kit extends all the way up to the P10000 with 10 m in diameter.
