P. 472
®

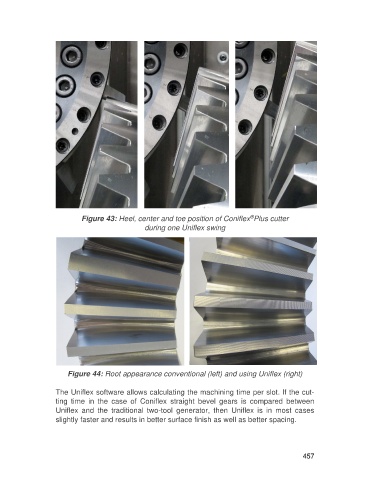

Figure 43: Heel, center and toe position of Coniflex Plus cutter
during one Uniflex swing
Figure 44: Root appearance conventional (left) and using Uniflex (right)
The Uniflex software allows calculating the machining time per slot. If the cut-
ting time in the case of Coniflex straight bevel gears is compared between
Uniflex and the traditional two-tool generator, then Uniflex is in most cases
slightly faster and results in better surface finish as well as better spacing.
457
