or 15” diameter. Like UNIMILL, Uniflex performs a swing or stroke motion
along the face width of a slot and machines one generating flat in one stroke.

Uniflex allows either the extension of the machine limits by applying a smaller
size Coniflex cutter or it can be used to achieve a nearly straight root line. The
Uniflex method is equally suited for the manufacturing of straight bevel gears
according to the Coniflex method or for the cutting or grinding of face gears
according to the Coniface process. The available three sizes of Phoenix ma-
chines are all capable of performing the Uniflex cutting or grinding method.

30.14 Literature

®
[1] Stadtfeld, H.J. “Coniflex Plus Straight Bevel Gear Manufacturing”, Compa-
ny Publication, The Gleason Works, Rochester, New York,
June. 2010

[2] Stadtfeld, H.J. “Coniface™ Face Gears Cutting and Grinding with Standard
Tools”, Company Publication, The Gleason Works, Roches-
ter, New York, April 2010

[3] Stadtfeld, H.J. “UNIMILL™ Prototype and Small Batch Bevel Gear Manu-
facturing”, Company Publication, The Gleason Works,
Rochester, New York, February 2016

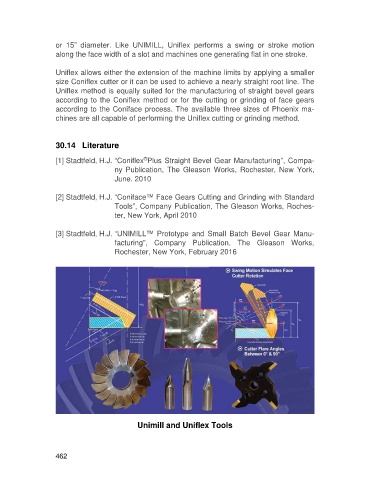

Unimill and Uniflex Tools
