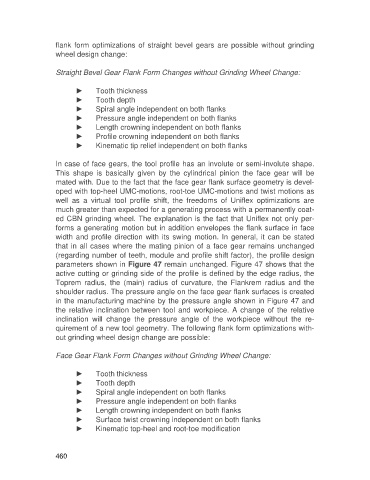

flank form optimizations of straight  bevel gears are possible without grinding
                   wheel design change:

                   Straight Bevel Gear Flank Form Changes without Grinding Wheel Change:

                          ►      Tooth thickness
                          ►      Tooth depth
                          ►      Spiral angle independent on both flanks
                          ►      Pressure angle independent on both flanks
                          ►      Length crowning independent on both flanks
                          ►      Profile crowning independent on both flanks
                          ►      Kinematic tip relief independent on both flanks

                   In case of face gears, the tool profile has an involute or semi-involute shape.
                   This  shape  is  basically  given  by  the  cylindrical  pinion  the  face  gear  will  be
                   mated with. Due to the fact that the face gear flank surface geometry is devel-
                   oped with top-heel UMC-motions, root-toe UMC-motions and twist motions as
                   well  as  a  virtual  tool  profile  shift,  the  freedoms  of  Uniflex  optimizations  are
                   much greater than expected for a generating process with a permanently coat-
                   ed CBN grinding wheel. The explanation is the fact that Uniflex not only per-
                   forms a generating motion but in addition envelopes the flank surface in face
                   width and profile direction  with its swing motion. In general, it can  be stated
                   that in all cases where the mating pinion of a face gear remains unchanged
                   (regarding number of teeth, module and profile shift factor), the profile design
                   parameters shown in Figure 47 remain unchanged. Figure 47 shows that the
                   active cutting or grinding side of the profile is defined by the edge radius, the
                   Toprem  radius,  the  (main)  radius  of  curvature,  the  Flankrem  radius  and  the
                   shoulder radius. The pressure angle on the face gear flank surfaces is created
                   in the manufacturing machine by the pressure angle shown in Figure 47 and
                   the relative inclination between tool and  workpiece. A change  of  the relative
                   inclination  will  change  the  pressure  angle  of  the  workpiece  without  the  re-
                   quirement of a new tool geometry. The following flank form optimizations with-
                   out grinding wheel design change are possible:

                   Face Gear Flank Form Changes without Grinding Wheel Change:

                          ►      Tooth thickness
                          ►      Tooth depth
                          ►      Spiral angle independent on both flanks
                          ►      Pressure angle independent on both flanks
                          ►      Length crowning independent on both flanks
                          ►      Surface twist crowning independent on both flanks
                          ►      Kinematic top-heel and root-toe modification
