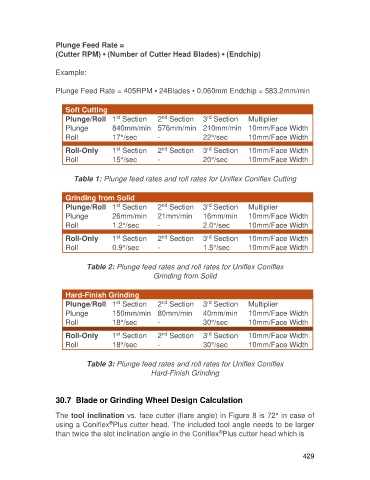

Plunge Feed Rate =
(Cutter RPM) ▪ (Number of Cutter Head Blades) ▪ (Endchip)

Example:

Plunge Feed Rate = 405RPM ▪ 24Blades ▪ 0.060mm Endchip = 583.2mm/min

Soft Cutting
rd
st
nd
Plunge/Roll 1 Section 2 Section 3 Section Multiplier
Plunge 840mm/min 576mm/min 210mm/min 10mm/Face Width
Roll 17°/sec - 22°/sec 10mm/Face Width

nd
rd
st
Roll-Only 1 Section 2 Section 3 Section 10mm/Face Width
Roll 15°/sec - 20°/sec 10mm/Face Width

Table 1: Plunge feed rates and roll rates for Uniflex Coniflex Cutting

Grinding from Solid
nd
st
rd
Plunge/Roll 1 Section 2 Section 3 Section Multiplier
Plunge 26mm/min 21mm/min 16mm/min 10mm/Face Width
Roll 1.2°/sec - 2.0°/sec 10mm/Face Width

rd
st
nd
Roll-Only 1 Section 2 Section 3 Section 10mm/Face Width
Roll 0.9°/sec - 1.5°/sec 10mm/Face Width

Table 2: Plunge feed rates and roll rates for Uniflex Coniflex
Grinding from Solid

Hard-Finish Grinding
nd
st
rd
Plunge/Roll 1 Section 2 Section 3 Section Multiplier
Plunge 150mm/min 80mm/min 40mm/min 10mm/Face Width
Roll 18°/sec - 30°/sec 10mm/Face Width

nd
rd
st
Roll-Only 1 Section 2 Section 3 Section 10mm/Face Width
Roll 18°/sec - 30°/sec 10mm/Face Width

Table 3: Plunge feed rates and roll rates for Uniflex Coniflex
Hard-Finish Grinding

30.7 Blade or Grinding Wheel Design Calculation

The tool inclination vs. face cutter (flare angle) in Figure 8 is 72° in case of
®
using a Coniflex Plus cutter head. The included tool angle needs to be larger
®
than twice the slot inclination angle in the Coniflex Plus cutter head which is
