P. 25
is printed, which in this case is not the tooth addendum but the distance from
the topland to the normal chordal tooth thickness point.

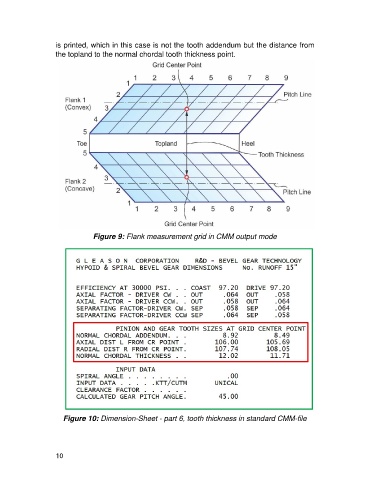

Figure 9: Flank measurement grid in CMM output mode
Figure 10: Dimension-Sheet - part 6, tooth thickness in standard CMM-file
10
