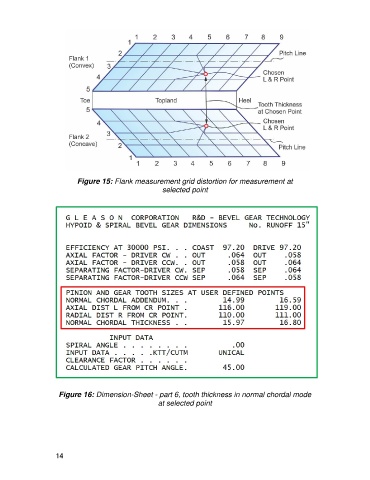

Figure 15: Flank measurement grid distortion for measurement at
selected point
Figure 16: Dimension-Sheet - part 6, tooth thickness in normal chordal mode
at selected point
