As a mathematical flank form correction model the axis of Phoenix free form ma-
chines can be directly used. An additional D rotation of the work axis (A-axis in
Figure 8) is equivalent to the modified roll function in the basic settings if the cor-
rect depth and spacing adjustments are made. The modification DAi for one spe-
cific roll position requires an adjustment of DXi, DYi and DZi which are calculated
as follows:

DYi = Ri • sin(DAi)

DXi = Ri • (1-cos(DAi) • sing Root

DZi = Ri • (1-cos(DAi) • cosg Root
Whereas:

Ri… Root radius at particular face width position

g root…Root angle of gear

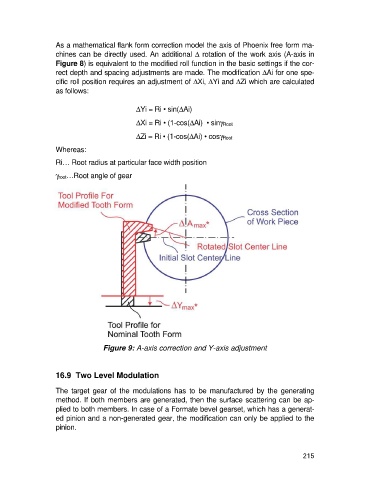

Figure 9: A-axis correction and Y-axis adjustment

16.9 Two Level Modulation

The target gear of the modulations has to be manufactured by the generating
method. If both members are generated, then the surface scattering can be ap-
plied to both members. In case of a Formate bevel gearset, which has a generat-
ed pinion and a non-generated gear, the modification can only be applied to the
pinion.

215
