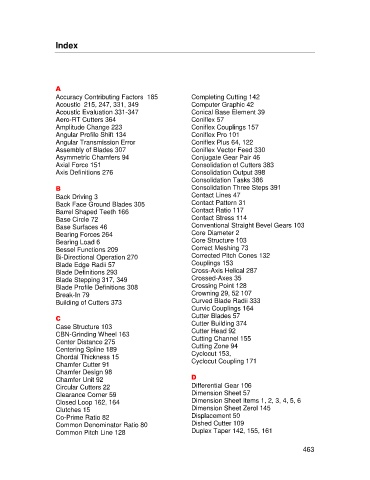

Index

A
Accuracy Contributing Factors 185 Completing Cutting 142
Acoustic 215, 247, 331, 349 Computer Graphic 42
Acoustic Evaluation 331-347 Conical Base Element 39
Aero-RT Cutters 364 Coniflex 57
Amplitude Change 223 Coniflex Couplings 157
Angular Profile Shift 134 Coniflex Pro 101
Angular Transmission Error Coniflex Plus 64, 122
Assembly of Blades 307 Coniflex Vector Feed 330
Asymmetric Chamfers 94 Conjugate Gear Pair 46
Axial Force 151 Consolidation of Cutters 383
Axis Definitions 276 Consolidation Output 398
Consolidation Tasks 386
B Consolidation Three Steps 391
Back Driving 3 Contact Lines 47
Back Face Ground Blades 305 Contact Pattern 31
Barrel Shaped Teeth 166 Contact Ratio 117
Base Circle 72 Contact Stress 114
Base Surfaces 46 Conventional Straight Bevel Gears 103
Bearing Forces 264 Core Diameter 2
Bearing Load 6 Core Structure 103
Bessel Functions 209 Correct Meshing 73
Bi-Directional Operation 270 Corrected Pitch Cones 132
Blade Edge Radii 57 Couplings 153
Blade Definitions 293 Cross-Axis Helical 287
Blade Stepping 317, 349 Crossed-Axes 35
Blade Profile Definitions 308 Crossing Point 128
Break-In 79 Crowning 29, 52 107
Building of Cutters 373 Curved Blade Radii 333
Curvic Couplings 164
C Cutter Blades 57
Cutter Building 374
Case Structure 103
CBN-Grinding Wheel 163 Cutter Head 92
Center Distance 275 Cutting Channel 155
Centering Spline 189 Cutting Zone 94
Chordal Thickness 15 Cyclocut 153,
Cyclocut Coupling 171
Chamfer Cutter 91
Chamfer Design 98
Chamfer Unit 92 D
Circular Cutters 22 Differential Gear 106
Clearance Corner 59 Dimension Sheet 57
Closed Loop 162, 164 Dimension Sheet Items 1, 2, 3, 4, 5, 6
Clutches 15 Dimension Sheet Zerol 145
Co-Prime Ratio 82 Displacement 50
Common Denominator Ratio 80 Dished Cutter 109
Common Pitch Line 128 Duplex Taper 142, 155, 161

463
