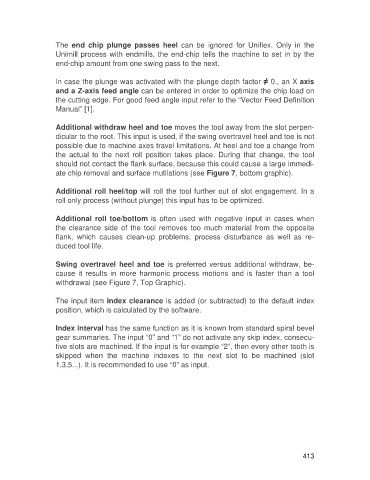

The  end  chip  plunge  passes  heel  can  be  ignored  for  Uniflex.  Only  in  the
                   Unimill process with endmills, the end-chip tells the machine to set in by the
                   end-chip amount from one swing pass to the next.

                   In case the plunge was activated with the plunge depth factor ≠ 0., an X axis
                   and a Z-axis feed angle can be entered in order to optimize the chip load on
                   the cutting edge. For good feed angle input refer to the “Vector Feed Definition
                   Manual” [1].

                   Additional withdraw heel and toe moves the tool away from the slot perpen-
                   dicular to the root. This input is used, if the swing overtravel heel and toe is not
                   possible due to machine axes travel limitations. At heel and toe a change from
                   the  actual  to  the  next  roll  position  takes  place.  During  that  change,  the  tool
                   should not contact the flank surface, because this could cause a large immedi-
                   ate chip removal and surface mutilations (see Figure 7, bottom graphic).

                   Additional roll heel/top will roll the tool further out of slot engagement. In a
                   roll only process (without plunge) this input has to be optimized.

                   Additional roll  toe/bottom  is often used  with negative input in  cases when
                   the clearance  side of the tool removes  too much material  from the  opposite
                   flank,  which  causes  clean-up  problems,  process  disturbance  as  well  as  re-
                   duced tool life.

                   Swing overtravel  heel and toe is preferred  versus  additional withdraw,  be-
                   cause  it  results  in  more  harmonic  process  motions  and  is  faster  than  a  tool
                   withdrawal (see Figure 7, Top Graphic).

                   The input item index clearance is added (or subtracted) to the default index
                   position, which is calculated by the software.

                   Index interval has the same function as it is known from standard spiral bevel
                   gear summaries. The input “0” and “1” do not activate any skip index, consecu-
                   tive slots are machined. If the input is for example “2”, then every other tooth is
                   skipped  when  the  machine  indexes  to  the  next  slot  to  be  machined  (slot
                   1,3,5...). It is recommended to use “0” as input.
