P. 75

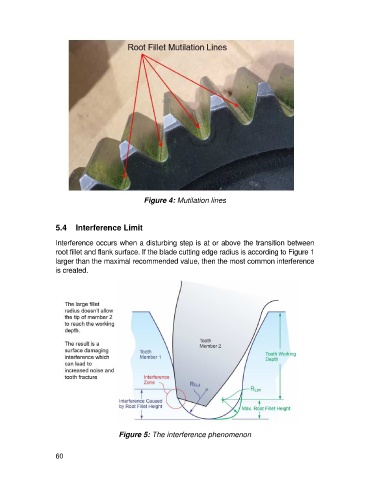

Figure 4: Mutilation lines
5.4 Interference Limit
Interference occurs when a disturbing step is at or above the transition between
root fillet and flank surface. If the blade cutting edge radius is according to Figure 1
larger than the maximal recommended value, then the most common interference
is created.
Figure 5: The interference phenomenon
60
