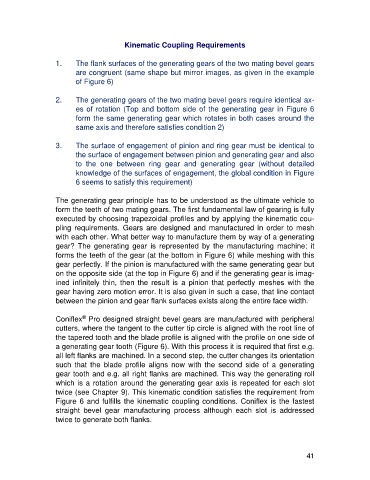

Kinematic Coupling Requirements

                   1.     The flank surfaces of the generating gears of the two mating bevel gears
                          are congruent (same shape but mirror images, as given in the example
                          of Figure 6)

                   2.     The generating gears of the two mating bevel gears require identical ax-
                          es of rotation (Top and bottom side of the generating gear in Figure 6
                          form the same generating gear which rotates in both cases around the
                          same axis and therefore satisfies condition 2)

                   3.     The surface of engagement of pinion and ring gear must be identical to
                          the surface of engagement between pinion and generating gear and also
                          to  the  one  between  ring  gear  and  generating  gear  (without  detailed
                          knowledge of the surfaces of engagement, the global condition in Figure
                          6 seems to satisfy this requirement)

                   The generating gear principle has to be understood as the ultimate vehicle to
                   form the teeth of two mating gears. The first fundamental law of gearing is fully
                   executed by choosing trapezoidal profiles and by applying the kinematic cou-
                   pling  requirements.  Gears  are  designed  and  manufactured  in  order  to  mesh
                   with each other. What better way to manufacture them by way of a generating
                   gear?  The  generating  gear  is  represented  by  the  manufacturing  machine;  it
                   forms the teeth of the gear (at the bottom in Figure 6) while meshing with this
                   gear perfectly. If the pinion is manufactured with the same generating gear but
                   on the opposite side (at the top in Figure 6) and if the generating gear is imag-
                   ined  infinitely  thin,  then  the  result  is  a  pinion  that  perfectly  meshes  with  the
                   gear having zero motion error. It is also given in such a case, that line contact
                   between the pinion and gear flank surfaces exists along the entire face width.

                            ®
                   Coniflex  Pro designed straight bevel gears are manufactured with peripheral
                   cutters, where the tangent to the cutter tip circle is aligned with the root line of
                   the tapered tooth and the blade profile is aligned with the profile on one side of
                   a generating gear tooth (Figure 6). With this process it is required that first e.g.
                   all left flanks are machined. In a second step, the cutter changes its orientation
                   such  that  the  blade  profile  aligns  now  with  the  second  side  of  a  generating
                   gear tooth and e.g. all right flanks are machined. This way the generating roll
                   which is a rotation around the generating gear axis is repeated for each slot
                   twice (see Chapter 9). This kinematic condition satisfies the requirement from
                   Figure 6 and fulfills the kinematic coupling conditions. Coniflex is the fastest
                   straight  bevel  gear  manufacturing  process  although  each  slot  is  addressed
                   twice to generate both flanks.
