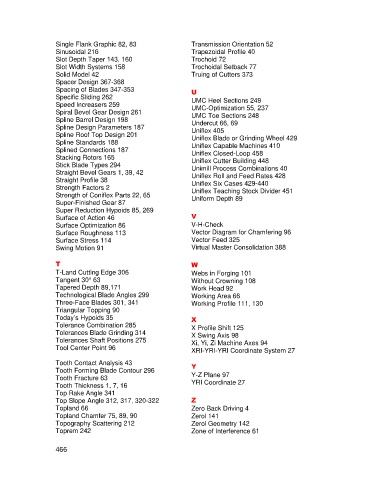

P. 481

Single Flank Graphic 82, 83                  Transmission Orientation 52
                   Sinusoidal 216                               Trapezoidal Profile 40
                   Slot Depth Taper 143, 160                    Trochoid 72
                   Slot Width Systems 158                       Trochoidal Setback 77
                   Solid Model 42                               Truing of Cutters 373
                   Spacer Design 367-368
                   Spacing of Blades 347-353                    U
                   Specific Sliding 262                         UMC Heel Sections 249
                   Speed Increasers 259                         UMC-Optimization 55, 237
                   Spiral Bevel Gear Design 261                 UMC Toe Sections 248
                   Spline Barrel Design 198                     Undercut 66, 69
                   Spline Design Parameters 187                 Uniflex 405
                   Spline Roof Top Design 201                   Uniflex Blade or Grinding Wheel 429
                   Spline Standards 188                         Uniflex Capable Machines 410
                   Splined Connections 187                      Uniflex Closed-Loop 458
                   Stacking Rotors 165                          Uniflex Cutter Building 448
                   Stick Blade Types 294                        Unimill Process Combinations 40
                   Straight Bevel Gears 1, 39, 42               Uniflex Roll and Feed Rates 428
                   Straight Profile 38                          Uniflex Six Cases 429-440
                   Strength Factors 2                           Uniflex Teaching Stock Divider 451
                   Strength of Coniflex Parts 22, 65            Uniform Depth 89
                   Super-Finished Gear 87
                   Super Reduction Hypoids 85, 269
                   Surface of Action 46                         V
                   Surface Optimization 86                      V-H-Check
                   Surface Roughness 113                        Vector Diagram for Chamfering 96
                   Surface Stress 114                           Vector Feed 325
                   Swing Motion 91                              Virtual Master Consolidation 388

                   T                                            W
                   T-Land Cutting Edge 306                      Webs in Forging 101
                   Tangent 30° 63                               Without Crowning 108
                   Tapered Depth 89,171                         Work Head 92
                   Technological Blade Angles 299               Working Area 66
                   Three-Face Blades 301, 341                   Working Profile 111, 130
                   Triangular Topping 90
                   Today’s Hypoids 35                           X
                   Tolerance Combination 285                    X Profile Shift 125
                   Tolerances Blade Grinding 314                X Swing Axis 98
                   Tolerances Shaft Positions 275               Xi, Yi, Zi Machine Axes 94
                   Tool Center Point 96                         XRI-YRI-YRI Coordinate System 27

                   Tooth Contact Analysis 43
                   Tooth Forming Blade Contour 296              Y
                   Tooth Fracture 63                            Y-Z Plane 97
                   Tooth Thickness 1, 7, 16                     YRI Coordinate 27
                   Top Rake Angle 341
                   Top Slope Angle 312, 317, 320-322            Z
                   Topland 66                                   Zero Back Driving 4
                   Topland Chamfer 75, 89, 90                   Zerol 141
                   Topography Scattering 212                    Zerol Geometry 142
                   Toprem 242                                   Zone of Interference 61


                   466
