- Whole depth and deviation from average
- Pinion face width and deviation from average
- Included pinion blade pressure angle and deviation from average
- Pinion point width and deviation from average
- Effective cutter offset angle
- Required pinion depth correction versus original Jobs

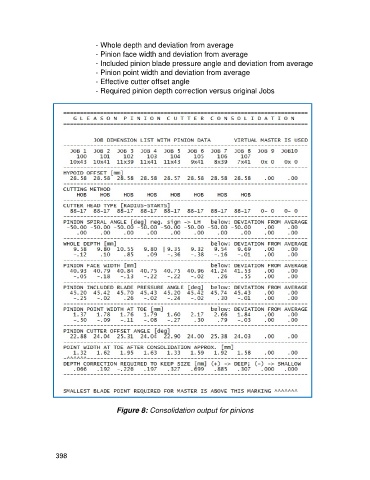

Figure 8: Consolidation output for pinions

398
