the right. Although this movement is only 1 to 3 microns, it presses the
blade which already contacts the blade height stop of the CB machine with
unacceptable high force against the carbide surface of the stop. The result
is in many cases a micro-chip at the blade tip.

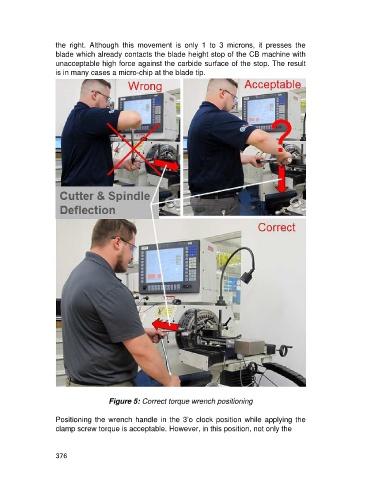

Figure 5: Correct torque wrench positioning

Positioning the wrench handle in the 3’o clock position while applying the
clamp screw torque is acceptable. However, in this position, not only the

376
