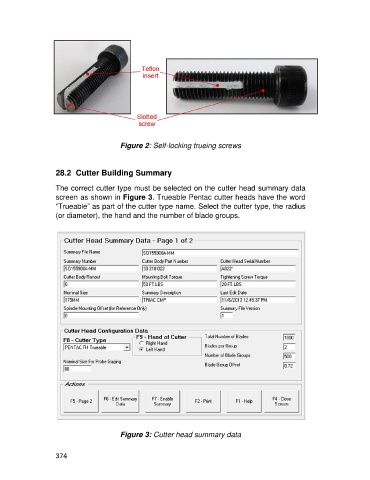

Figure 2: Self-locking trueing screws
28.2 Cutter Building Summary
The correct cutter type must be selected on the cutter head summary data
screen as shown in Figure 3. Trueable Pentac cutter heads have the word
“Trueable” as part of the cutter type name. Select the cutter type, the radius
(or diameter), the hand and the number of blade groups.
Figure 3: Cutter head summary data
