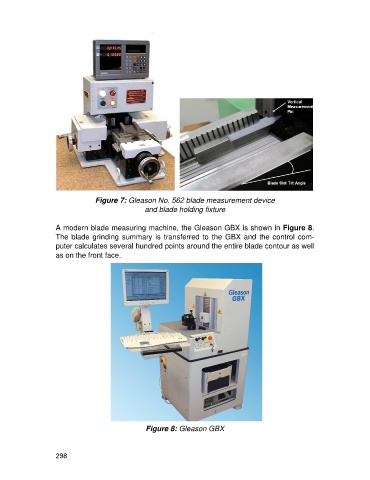

Figure 7: Gleason No. 562 blade measurement device
and blade holding fixture
A modern blade measuring machine, the Gleason GBX is shown in Figure 8.
The blade grinding summary is transferred to the GBX and the control com-
puter calculates several hundred points around the entire blade contour as well
as on the front face.
Figure 8: Gleason GBX
