8.7 Practical Examples

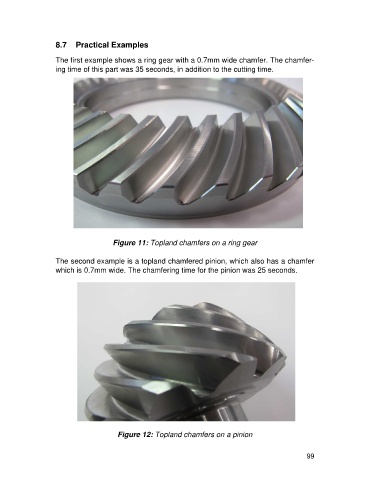

The first example shows a ring gear with a 0.7mm wide chamfer. The chamfer-
ing time of this part was 35 seconds, in addition to the cutting time.
Figure 11: Topland chamfers on a ring gear
The second example is a topland chamfered pinion, which also has a chamfer
which is 0.7mm wide. The chamfering time for the pinion was 25 seconds.
Figure 12: Topland chamfers on a pinion
