P. 43

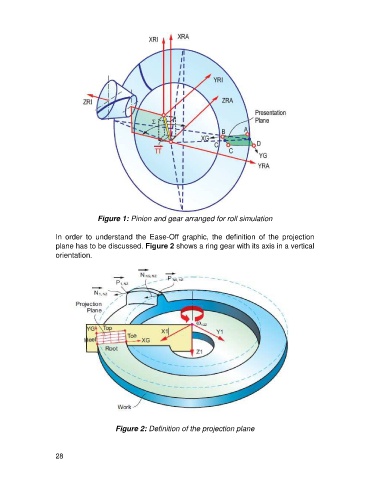

Figure 1: Pinion and gear arranged for roll simulation
In order to understand the Ease-Off graphic, the definition of the projection
plane has to be discussed. Figure 2 shows a ring gear with its axis in a vertical
orientation.
Figure 2: Definition of the projection plane
28
