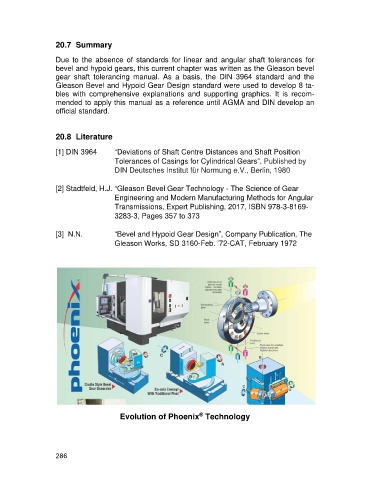

20.7 Summary

Due to the absence of standards for linear and angular shaft tolerances for
bevel and hypoid gears, this current chapter was written as the Gleason bevel
gear shaft tolerancing manual. As a basis, the DIN 3964 standard and the
Gleason Bevel and Hypoid Gear Design standard were used to develop 8 ta-
bles with comprehensive explanations and supporting graphics. It is recom-
mended to apply this manual as a reference until AGMA and DIN develop an
official standard.

20.8 Literature

[1] DIN 3964 “Deviations of Shaft Centre Distances and Shaft Position
Tolerances of Casings for Cylindrical Gears”, Published by
DIN Deutsches Institut für Normung e.V., Berlin, 1980

[2] Stadtfeld, H.J. “Gleason Bevel Gear Technology - The Science of Gear
Engineering and Modern Manufacturing Methods for Angular
Transmissions, Expert Publishing, 2017, ISBN 978-3-8169-
3283-3, Pages 357 to 373

[3] N.N. “Bevel and Hypoid Gear Design”, Company Publication, The
Gleason Works, SD 3160-Feb. ’72-CAT, February 1972

®
Evolution of Phoenix Technology

286
