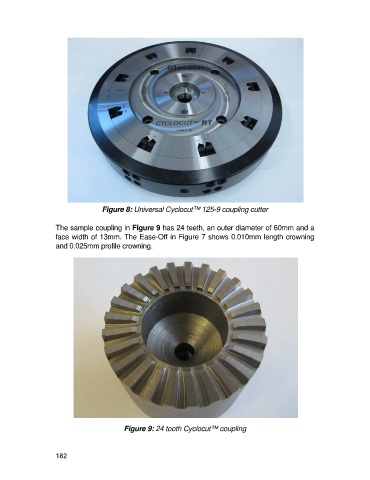

Figure 8: Universal Cyclocut™ 125-9 coupling cutter
The sample coupling in Figure 9 has 24 teeth, an outer diameter of 60mm and a
face width of 13mm. The Ease-Off in Figure 7 shows 0.010mm length crowning
and 0.025mm profile crowning.
Figure 9: 24 tooth Cyclocut™ coupling
