B N  GRINDING WHEEL DESIGN DATA” in Figure 29 reflect the adjusted pro-
                   file definitions for a grinding wheel which is capable to perform the UNIFLEX
                   process. Commonly the grinding wheel design is done by Gleason R&D.

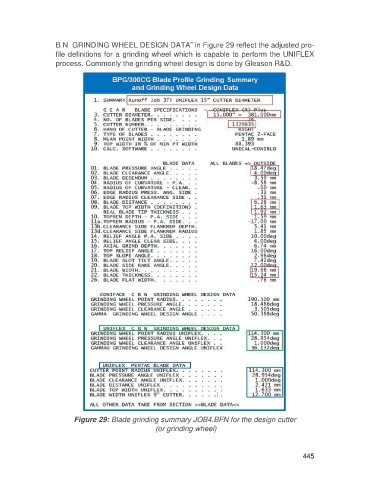

                         Figure 29: Blade grinding summary JOB4.BFN for the design cutter
                                                     (or grinding wheel)




                                                                                                     445
