remain. All calculated values for the changed items in Figure 27 can be found in
the blue framed section in Figure 26 (last section in the original blade grinding
summary).

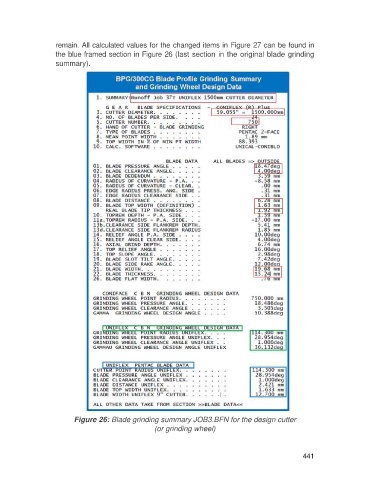

Figure 26: Blade grinding summary JOB3.BFN for the design cutter
(or grinding wheel)

441
