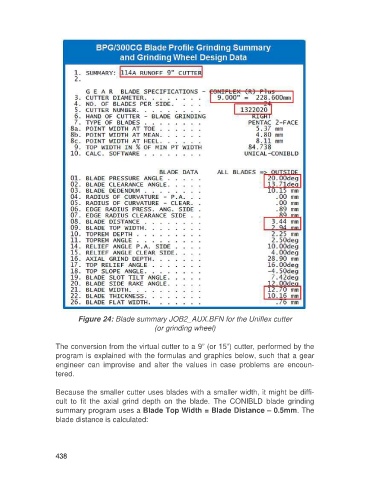

Figure 24: Blade summary JOB2_AUX.BFN for the Uniflex cutter
(or grinding wheel)

The conversion from the virtual cutter to a 9” (or 15”) cutter, performed by the
program is explained with the formulas and graphics below, such that a gear
engineer can improvise and alter the values in case problems are encoun-
tered.

Because the smaller cutter uses blades with a smaller width, it might be diffi-
cult to fit the axial grind depth on the blade. The CONIBLD blade grinding
summary program uses a Blade Top Width = Blade Distance – 0.5mm. The
blade distance is calculated:

438
