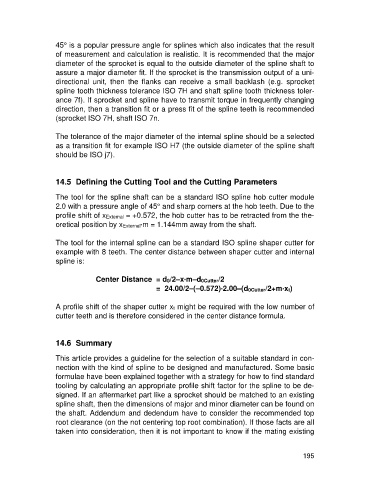

45° is a popular pressure angle for splines which also indicates that the result
                   of measurement and calculation is realistic. It is recommended that the major
                   diameter of the sprocket is equal to the outside diameter of the spline shaft to
                   assure a major diameter fit. If the sprocket is the transmission output of a uni-
                   directional  unit,  then  the  flanks  can  receive  a  small  backlash  (e.g.  sprocket
                   spline tooth thickness tolerance ISO 7H and shaft spline tooth thickness toler-
                   ance 7f). If sprocket and spline have to transmit torque in frequently changing
                   direction, then a transition fit or a press fit of the spline teeth is recommended
                   (sprocket ISO 7H, shaft ISO 7n.

                   The tolerance of the major diameter of the internal spline should be a selected
                   as a transition fit for example ISO H7 (the outside diameter of the spline shaft
                   should be ISO j7).


                   14.5  Defining the Cutting Tool and the Cutting Parameters

                   The tool for the spline shaft can be a standard ISO spline hob cutter module
                   2.0 with a pressure angle of 45° and sharp corners at the hob teeth. Due to the
                   profile shift of xExternal = +0.572, the hob cutter has to be retracted from the the-
                   oretical position by xExternal*m = 1.144mm away from the shaft.

                   The tool for the internal spline can be a standard ISO spline shaper cutter for
                   example with 8 teeth. The center distance between shaper cutter and internal
                   spline is:

                                 Center Distance  = d0/2–x*m–d0Cutter/2
                                                     =  24.00/2–(–0.572)*2.00–(d0Cutter/2+m*xt)

                   A profile shift of the shaper cutter xt might be required with the low number of
                   cutter teeth and is therefore considered in the center distance formula.


                   14.6  Summary

                   This article provides a guideline for the selection of a suitable standard in con-
                   nection with the kind of spline to be designed and manufactured. Some basic
                   formulae have been explained together with a strategy for how to find standard
                   tooling by calculating an appropriate profile shift factor for the spline to be de-
                   signed. If an aftermarket part like a sprocket should be matched to an existing
                   spline shaft, then the dimensions of major and minor diameter can be found on
                   the shaft. Addendum and dedendum have to consider the recommended top
                   root clearance (on the not centering top root combination). If those facts are all
                   taken into consideration, then it is not important to know if the mating existing
