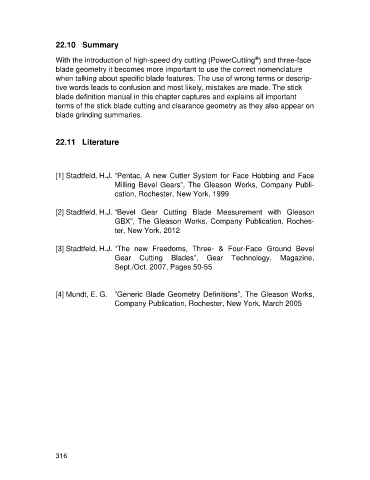

22.10 Summary

®
With the introduction of high-speed dry cutting (PowerCutting ) and three-face
blade geometry it becomes more important to use the correct nomenclature
when talking about specific blade features. The use of wrong terms or descrip-
tive words leads to confusion and most likely, mistakes are made. The stick
blade definition manual in this chapter captures and explains all important
terms of the stick blade cutting and clearance geometry as they also appear on
blade grinding summaries.

22.11 Literature

[1] Stadtfeld, H.J. “Pentac, A new Cutter System for Face Hobbing and Face
Milling Bevel Gears”, The Gleason Works, Company Publi-
cation, Rochester, New York, 1999

[2] Stadtfeld, H.J. “Bevel Gear Cutting Blade Measurement with Gleason
GBX”, The Gleason Works, Company Publication, Roches-
ter, New York, 2012

[3] Stadtfeld, H.J. “The new Freedoms, Three- & Four-Face Ground Bevel
Gear Cutting Blades”, Gear Technology, Magazine,
Sept./Oct. 2007, Pages 50-55

[4] Mundt, E. G. ”Generic Blade Geometry Definitions”, The Gleason Works,
Company Publication, Rochester, New York, March 2005

316
