22.8 Blade Profile Definitions and Dimensions

This section contains a collection of blade graphics with the different geometric
elements which are available for stick blades. The graphic in Figure 22 shows
next to the basic blade profiles also the legend for the symbols used in Figures
22 through 28.

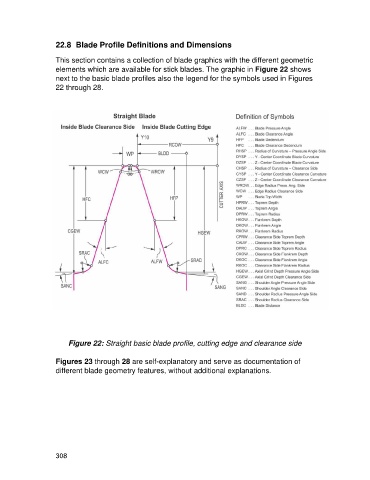

Figure 22: Straight basic blade profile, cutting edge and clearance side

Figures 23 through 28 are self-explanatory and serve as documentation of
different blade geometry features, without additional explanations.

308
